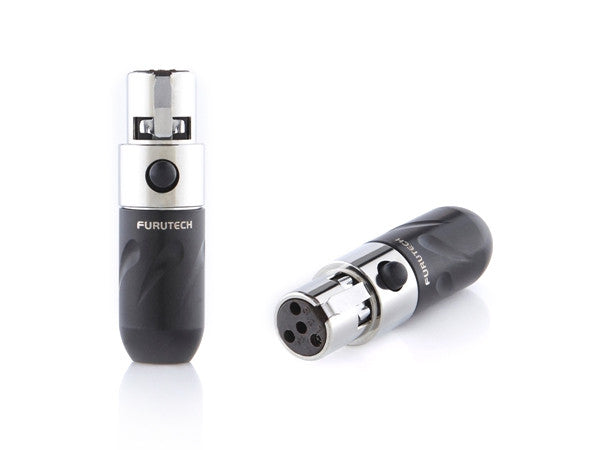

Furutech FT-610mF (R) Mini XLR Connector
$26.00 USDNEW Furutech FT-610mF (R) Mini XLR 4 pin connectors.
Price is per each or one connector.
The FT-610mF features an a (Alpha) phosphor bronze conductor with High Grade PPS insulation for minimal impedance and a nonmagnetic stainless housing for superior damping.
•Main conductor: Nonmagnetic Rhodium-plated α (Alpha) Phosphor bronze conductor
•Insulation with super heat resistant Polyphenylene Sulfide Resin for best soldering results
•Housing: Nonmagnetic stainless Black finished.
•Cable Clamp: Superior Damping Copper Alloy.
•Connections: Soldered
Furutech’s beautifully finished, beautiful sounding FT-610mF Connector is the result of meticulous engineering and careful audition of various suitable materials.
The FT-610mF features an α (Alpha) phosphor bronze conductor with High Grade PPS insulation for minimal impedance and a nonmagnetic stainless housing for superior damping.
•Main conductor: Nonmagnetic Rhodium-plated α (Alpha) Phosphor bronze conductor
•Insulation with super heat resistant Polyphenylene Sulfide Resin for best soldering results
•Housing: Nonmagnetic stainless Black finished.
•Cable Clamp: Superior Damping Copper Alloy.
•Connections: Soldered
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Housing Dimensions | 10.6φ × 18.5mm overall length |
| Total Overall Length | 34.7mm approximately |
| Cable Diameter Compatibility | Core insulation diameters up to 5.0mm |
| Conductor Specifications | |
| Main Conductor | Nonmagnetic rhodium-plated α (Alpha) phosphor bronze conductor |
| Connection Method | Soldered |
| Construction Specifications | |
| Housing Material | Nonmagnetic stainless steel, black finished |
| Insulation Material | Super heat resistant Polyphenylene Sulfide resin for best soldering results |
| Cable Clamp | Superior damping copper alloy |
