Furutech

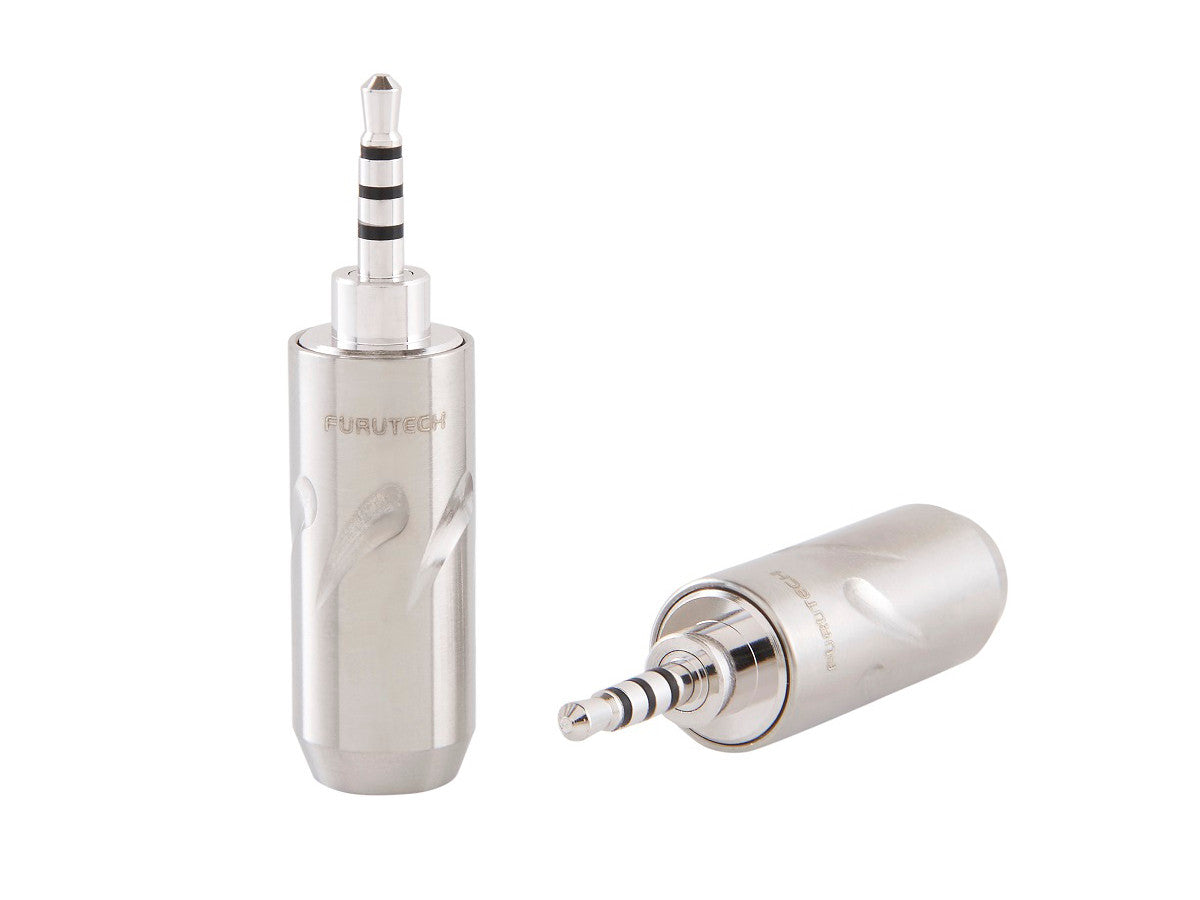

FT-7254 (R) High Performance 2.5mm (TRRS) Connector
$42.00 USDFurutech's beautifully finished, beautiful-sounding FT-7254(R) connectors are the result of meticulous engineering and careful audition of various suitable materials. The FT-7254(R) features a hybrid pin constructed with rhodium-plated alpha hybrid copper and SUS with special audio-grade P.P. resin insulation for minimal impedance and nonmagnetic stainless housing for superior damping.
Take 4 polarity 2.5mm stereo connectors
Furutech’s beautifully finished, beautiful-sounding FT-7254(R) connectors are the result of meticulous engineering and careful audition of various suitable materials. The FT-7254(R) features a hybrid pin constructed with rhodium-plated alpha hybrid copper and SUS with special audio-grade P.P. resin insulation for minimal impedance and nonmagnetic stainless housing for superior damping.
These connectors feature a nonmagnetic Rhodium-plated body constructed in a hybrid pin copper design. It can accommodate wires up to 5mm in diameter.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Housing Dimensions | 10.3φ × 25.0mm overall length |
| Total Overall Length | 39.6mm approximately |
| Cable Diameter Compatibility | Core insulation diameters up to 5.0mm |
| Conductor Specifications | |
| Main Conductor | Hybrid pin constructed with rhodium-plated α (Alpha) hybrid copper and SUS |
| Ground Conductor | Nonmagnetic rhodium-plated α (Alpha) hybrid copper |
| Connection Method | Soldered |
| Construction Specifications | |
| Housing Material | Nonmagnetic stainless steel |
| Insulation Material | Special audio grade P.P. resin |
| Cable Clamp | Copper alloy |
