Matrix Audio SI-1 Network Isolator Review: Severing the Noise at the Source
Read Time: Approx. 11 min.
TL;DR:
- The Matrix SI-1 is a network isolator that sits between your router and your music streamer, using active optical isolation to completely sever the electrical connection and block network noise.
- TOTL isolator in its class featuring dual femtosecond clocks, dual-fiber optical channels, and an internal power supply.
- Plug-and-play compatible with any Ethernet-connected streamer, NAS, or DAC, and pairs naturally with Matrix SS-1 Pro Network Switch.
- At $699, it's priced in the middle of the market, but outperforms devices costing two to three times more.
- Best suited for listeners with resolving systems who've already invested in quality streaming components and want to close the last gap in their signal chain.
Matrix Audio SI-1: The Missing Link Between Your Router and Your Music
Music streaming has become one of the most accessible ways to enjoy high-resolution audio. But every serious streaming setup has a weak link most audiophiles never think to address–and it's been sitting right between your router and your music streamer the whole time. That Ethernet cable running from your router? It's carrying more than music. It's carrying noise, electromagnetic interference from your router, switch, and every other device on your home network. And that noise has a direct path into your audio chain.
Matrix Audio, a hi-fi company that has spent the last several years building out one of the most thoughtful lineups of network audio products on the market, is betting that serious listeners are ready to address that blind spot. Their answer? The SI-1 Audio Grade Network Isolator–a compact, purpose-built device designed to sit at the very end of your network chain, right before your music streamer, and sever the electrical connection between your noisy home network and your clean audio signal path.
PROS
- Incredible value for money, combining isolation, clocking, and power supply into one chassis
- Internal linear PSU eliminates the irony of most isolators; keeps the signal path clean from the inside out
- Dead-simple integration: one Ethernet in, one Ethernet out
CONS
- Users with multiple streamers or a NAS would need additional units
The Problem the SI-1 Solves
In any streaming setup, the network connection is paramount. It's both the source of music and a potential source of contamination. Without a stable network connection, you won't be able to reap the benefits of streaming–you might as well not stream at all. We've always emphasized the value of a wired network connection over a wireless one, regardless of the components used or the setup itself. But even a wired network connection doesn't guarantee you a problem-free listening experience.
Routers and network switches generate EMI and RFI. Ground potential differences between devices can create ground loop noise. Power supply noise from network hardware can bleed downstream. None of this is controversial — it's basic electrical engineering. The question has always been how much of that noise actually makes it through to affect what you hear, and how we address it to yield audible improvements. The SI-1 enters the picture targeting three core functions: galvanic isolation against network noise, optimized digital signal transmission, and surge protection for downstream equipment.
By incorporating a network isolator into your hi-fi system, you're blocking EMI/RFI generated by routers and switches from entering the audio system. It will eliminate power supply noise from network devices, resulting in a cleaner and darker background.
How the SI-1 Works
The Matrix Audio SI-1 achieves comprehensive sound quality improvement through a suite of core technologies:
- Active optical-electrical isolation technology, eliminates noise from network transmission
- Dual-channel optical fiber transmission with independent transmit and receive paths
- Dual-winding epoxy-potted toroidal transformer with multiple LDO linear power supplies
- Dual femtosecond clocks
- 2x 1 Gbps RJ45 ports: one input port and one isolated output port
- Front-panel connection status indicator, making the working status clear at a glance
- Physically separated RJ45 ports, dedicated isolation washer on the output port
- Full CNC enclosure, Matrix Design language
Active Optical-Electrical Isolation

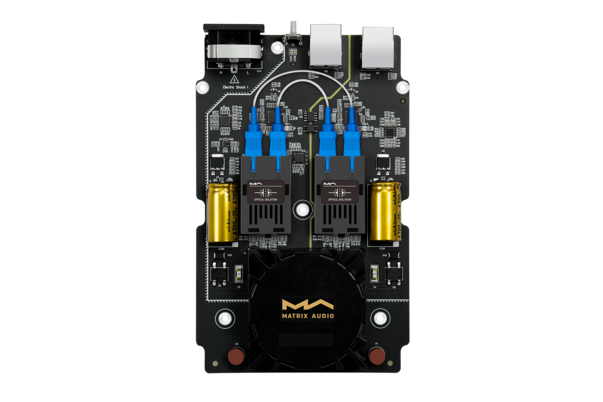

The SI-1's active optical electrical isolation technology sets the foundation for its performance, effectively blocking electromagnetic interference generated by routers and network switches. It accepts a standard RJ45 Ethernet connection from your network on its input port, and internally that electrical signal is converted into an optical signal via two specialized optical transmitters–one handling upstream data, one handling downstream.
By converting to light, the SI-1 breaks the direct electrical connection between your network and your audio equipment. There's no path for noise to travel. The galvanic isolation is complete. On the output side, the optical signal is converted back to electrical and sent to your streamer through an isolated RJ45 port. That output also features a physical electrical isolation washer, reinforcing the separation and cutting off electrical continuity between devices.
By purifying network noise that can interfere with audio signals, this technology breaks ground loops and prevents current noise caused by grounding potential differences between devices.
The Clock

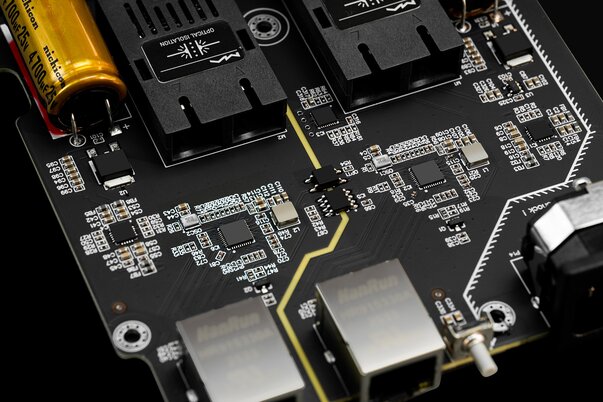

Timing is everything in any digital audio setup, and jitter–those annoying timing inaccuracies in the data stream–is the enemy. The SI-1 incorporates dual femtosecond clock circuits to mitigate potential timing errors. Not only are femtosecond clocks an incredible choice on Matrix's part, but having two of them means the SI-1 is actively rebuilding the network signal with superior timing accuracy rather than simply passing through whatever your router handed it.
Power Supply: Internal and Linear
Here's another area where Matrix Audio made a great engineering choice. Most network isolators on the market are passive devices meaning they don't have their own power supply and draw whatever they need from the network signal, or they ship with an external switching power supply. Switching power supplies themselves are a source of noise, which defeats the purpose of a noise isolation device.

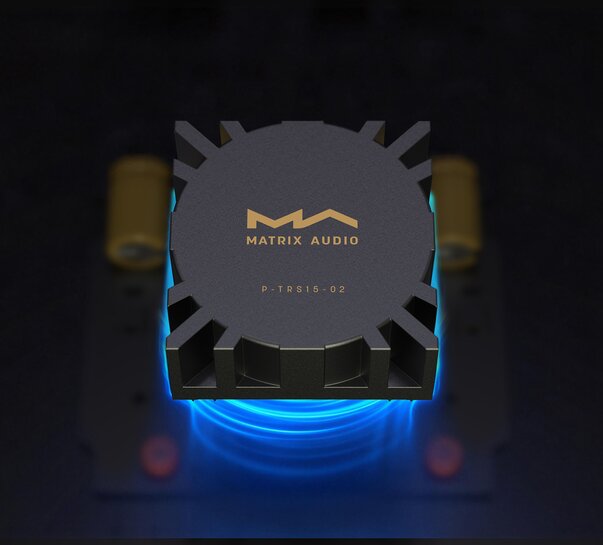

The SI-1 uses an internal linear power supply built around a dual-winding epoxy-potted toroidal transformer feeding multiple independent LDO regulation circuits. This provides clean, stable DC voltage to the optical transmitters and femtosecond clocks without introducing new noise into the equation. Sure, it's a more expensive approach, and it's why the SI-1 requires an AC power connection and consumes up to 15W, but it's a smart approach. The device isn't compromising its own performance with a noisy power source.
The Big Picture: Design & Specs

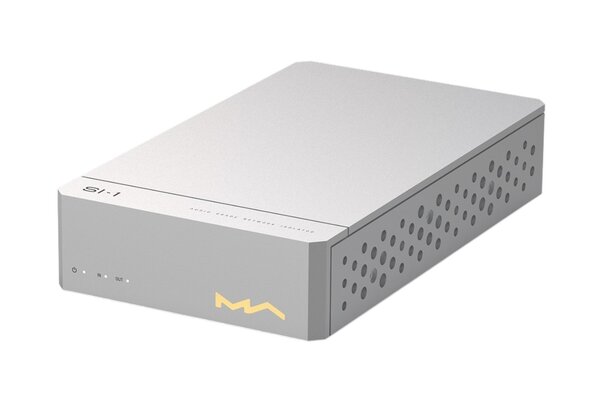

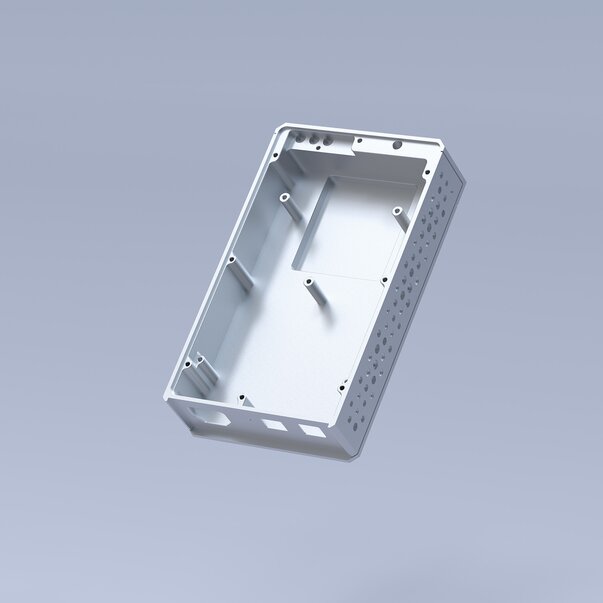

The SI-1 follows Matrix Audio's design philosophy–clean, minimal, and understated. The chassis was expertly crafted, featuring a CNC-machined unibody aluminum enclosure. Not only is it premium looking, but it has a purpose far greater than looks: enhanced shielding against external interference.
The unit itself is rather small at 4.72" x 8.07" x 1.73", so it won't take up a lot of space in your existing setup. As for weight, at 3.4 lbs, if you have to move it around, it won't cost you a day out of work.

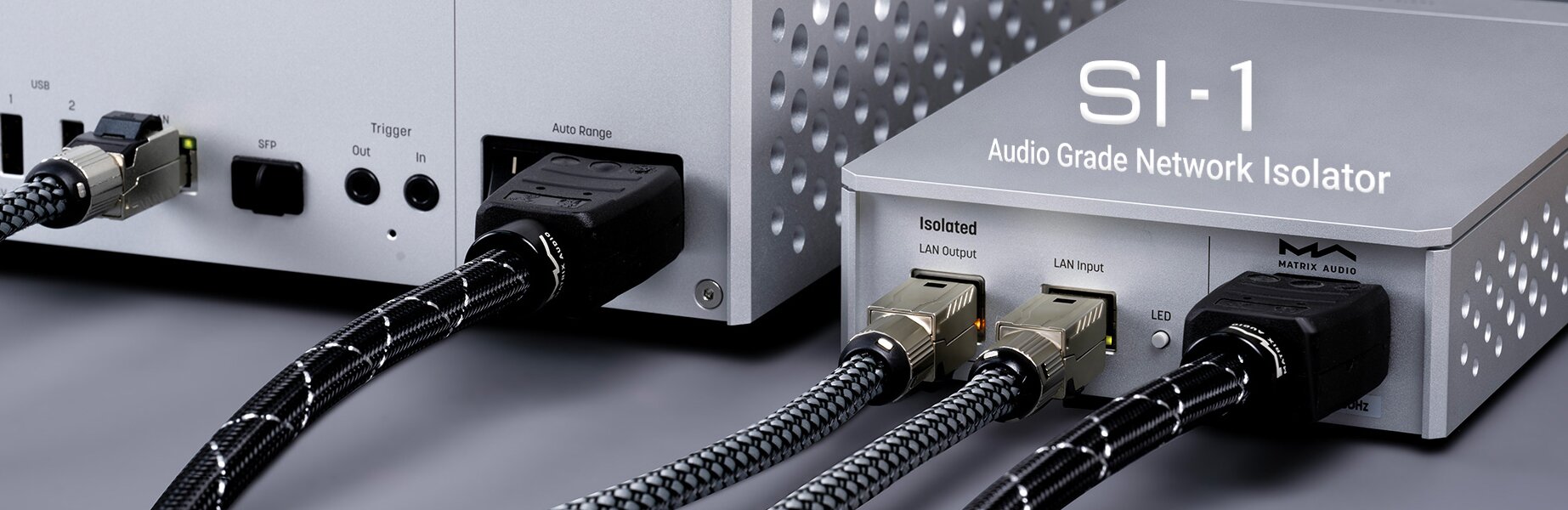

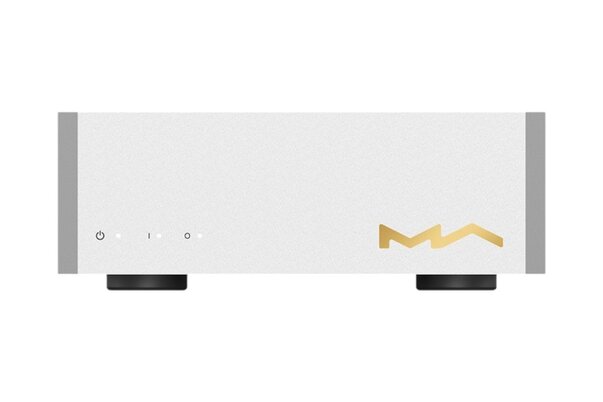

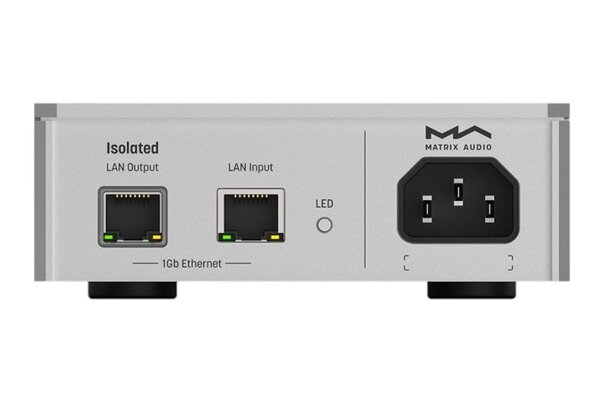

This isn't the device with a thousand buttons and fancy functions on the front panel. Why? Because it doesn't need it. On the front panel sit three LED light indicators–one for power and one for each link status–alongside the Matrix Audio logo. The back panel continues that minimalist mindset with only what you need and nothing more. Two RJ45 ports–intentionally separated with the input on one side and the output on the other–a button to switch off the Ethernet port LEDs on the front panel, and the power port.
Where it Fits In Your System

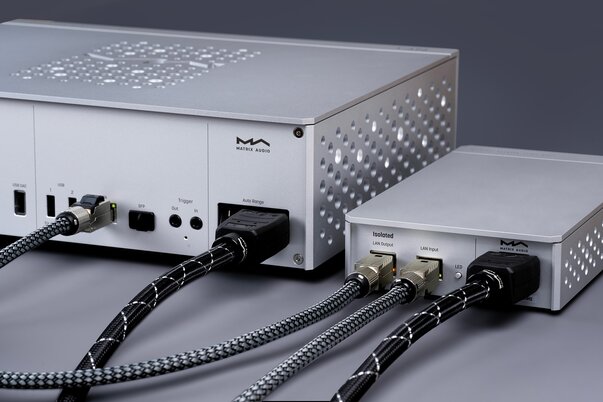

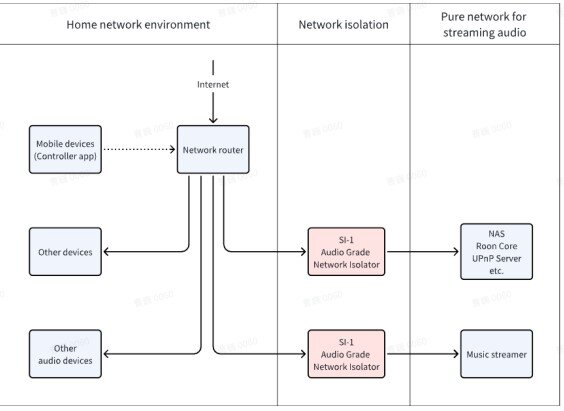

While it might seem daunting at first, integrating the SI-1 into your system is simple and painless. On the input side, the SI-1 needs to be directly connected to your modem/router. The output will be used to connect the SI-1 to your source device, such as your dedicated music streamer or network player. In the simplest terms possible: the SI-1 sits between your network router and streamer. It's the last step in your network chain before the music streamer.
In a simple setup, the signal path looks like this: Router → SI-1 → Music Streamer.

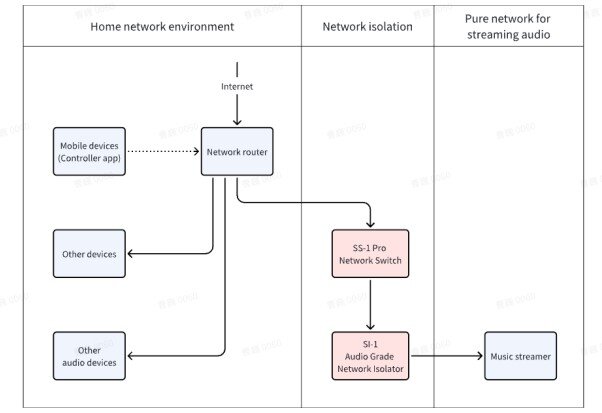

If you're also running a NAS or Roon Core server, you could place a second SI-1 between your switch and that device–but that's only if you think you need it. Now if you want to get fancy with it (or maybe already own one), you can add the Matrix Audio SS-1 Pro or SS-1 Network Switch into the mix. It would look a little something like this: Router → SS-1 Pro → SI-1 → Music Streamer. The switch handles signal regularization and serves as the hub of your network; the isolator handles the final stage noise elimination right before the streamer. They're complementary devices.
The SI-1 is designed to work intuitively with other Matrix Audio components, harnessing the power of a full Matrix ecosystem, but that doesn't limit you to only their gear. The SI-1 is also compatible with a slew of other hi-fi brands of streamers, NAS drives, media servers, and other equipment with Ethernet connectivity. So whether that's your trusty music streamer or beloved audio-grade network switch from another brand, no problems there.
Dragon Cables
[Silver Dragon Network Cable, Bronze Dragon Network Cable]
There are a lot of reasons why you need to make sure your audio cables are not afterthoughts.
Our HiFi Audio Dragon Cables bring out more of what you love in your music and audio gear. If you love your headphones but wish they had a bit more top-end sparkle - a Silver Dragon Headphone Cable would be a great option. If your USB cables keep dying - as many stock cables do - then check out our quality USB Audio Cables. We say time and time again that materials matter, and our audio cables and custom geometries actually help to bring out those desired properties in your gear and music. We make tons of custom options for our customers so that you can get the right HiFi Audio cable for your exact needs. If you have any questions feel free to Contact Us and we'll be more than happy to help.
Verdict
If you're asking yourself, "Who is the SI-1 for?" here's the answer. Anyone who has already invested in a quality streaming chain–a capable streamer, a good DAC, serious amplification, that favorite pair of speakers–and is looking to optimize the signal path feeding it all. If you've built a resolving system and you're chasing that last percentage point of background blackness, detail retrieval, and timing precision, the Matrix Audio SI-1 Network Audio Grade Isolator addresses those problems.
It's one of those hi-fi components that makes you wonder how you ever listened without it. Pair it with our high-quality Dragon Audio Cables, like the Silver Dragon Network Cable or Bronze Dragon Network Cable, and your system is breaching the gates of reference territory. Our Dragon Audio Cables are built purposefully with high-quality materials to your specifications, so you don't have to spend time fussing with cables or worrying that something might be missing. For anyone building a high-resolution streaming system, this is the piece that quietly does the most important work: getting out of the way so your music can breathe.
Featured Products
Related Videos
Why Your Home Network Gear is Killing Your Hi-Res Streaming Audio (And How to Fix It)
4 Best Buy Music Streamers Comparison: Matrix MS-1, NT-1, TT-1, TS-1 & More
The Secret to FLAWLESS Network Music Streaming | Matrix Audio SS-1 Pro Review
What's in the Box
- Matrix Audio SI-1 Audio Grade Network Isolator
- Power Cable (x1)
- User Manual (x1)
- Warranty Card (x1)
Specifications
Standards and Protocols:
- IEEE 802.3: 10BASE-T
- IEEE 802.3 u: 100BASE-X
- IEEE 802.3 z: 1000BASE-T
- IEEE 802.3 ab: 1000BASE-T
Ports: 1 x 1Gbps/100Mbps/10Mbps RJ45, 1 x 1Gbps/100Mbps/10Mbps RJ45 (Photoelectric isolation)
LED Indicators: There is one LED for power status on the front panel. There are two LEDs for link status on the front panel. On the back panel, each LAN Port has 2 LEDs for speed, link, and activity
Max MAC Entries: 2K MAC address table
Power Voltage: AC 100V-120V 50/60Hz or AC 220V-240V 50/60Hz, factory-fixed
Power Consumption: < 15W
Weight: 1.54kg (3.39 pounds)
Dimensions: Width: 120mm (4.72 inches), Depth: 205mm (8.07 inches), Height: 44mm (1.73 inches)
Accessories: Power Cable *1, User Manual *1, Warranty Card *1
