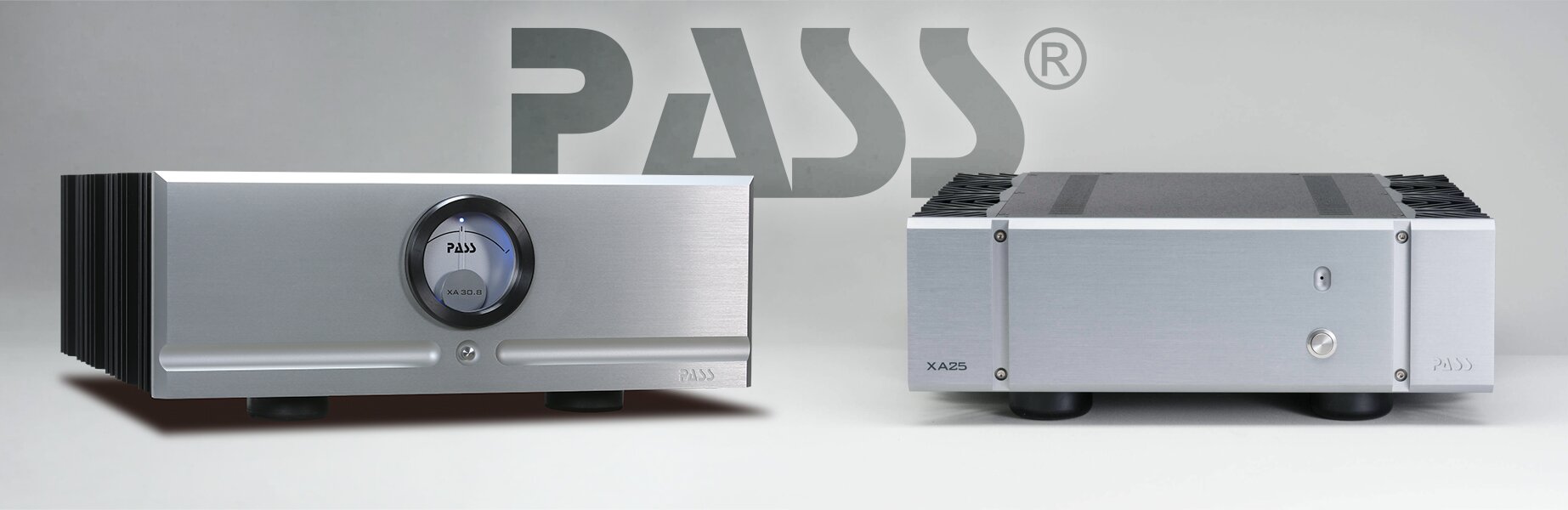

Pass Labs XA25 vs. XA30.8 Stereo Power Amplifier Review: Two Roads to Class A Bliss
Read Time: Approx. 15 min.
TL;DR:
- The XA25 and XA30.8 share the same warm, natural Class A sound signature but express it differently — the XA25 leans agile and vibrant, the XA30.8 leans powerful and controlled.
- The XA25 is more flexible with speaker pairings and punches above its 25W rating thanks to high current delivery and low distortion.
- The XA30.8 offers greater headroom and current for larger, more demanding loudspeakers, plus a dual-mono design for excellent channel separation.
- Both amplifiers benefit noticeably from the Silver Dragon Premium Interconnect Cable and Black Dragon Power Cable, which help reveal their full detail and dynamics.
- Choosing between them comes down to your current speakers, your room, and whether you plan to upgrade to larger loudspeakers down the road.
Same Family, Different Philosophy: Decoding the XA25 vs. XA30.8 Amps
For many audiophiles, one of the first big upgrades in the hobby is moving from all-in-one combo units to dedicated separates–that first purchase of a standalone preamplifier paired with a dedicated stereo power amplifier. It's a transition that often marks a turning point, not just in the system architecture, but in how seriously you begin to take the pursuit of sound.
Once you're ready to make that leap, the next question quickly becomes which philosophy of amplification suits your ears: tubes, Class D, hybrid designs, etc. And for a certain breed of listener–one drawn to warmth and simplicity–that search tends to end in one place: Class A amplification.
Class A amplification sits at the heart of Pass Labs' identity. It was one of the very first designs Nelson Pass prototyped under the Pass Labs name, and in the decades since, the company has built a reputation on refining that same architecture rather than chasing trends. You'll find many exceptional amplifiers in Pass Labs' catalog, but two distinct expressions of Class A amplification offer the perfect entry point: the XA25 Stereo Power Amplifier and XA30.8 Stereo Power Amplifier. Both share a family sound and a commitment to simplicity, but with different power outputs, different design choices, and as I found over weeks of listening, different personalities.
PROS
- Two exceptional Class A amps delivering warm, natural, detailed sound
- XA30.8 has more headroom...flexibility to grow with your system
- XA25 is a flexible speaker pairing thanks to high current and low distortion
CONS
- Both units are large and heavy
- XA25 has less headroom for future speaker upgrades
- XA30.8 is slightly less quick and agile compared to the XA25
Answering your Burning Questions about Pass Labs' most alluring XA Amps
We constantly field questions about hi-fi audio gear, from customers seeking affirmation on which component to buy, how to troubleshoot an issue in their setup, and whether they should upgrade their daily drivers. Of all the high-fidelity brands we carry, Pass Labs is arguably one of the most inquired about–and one of the most difficult to dissect. It's not uncommon for a customer to call completely torn between two Pass Labs components, unsure which one actually fits their needs, their system, or their listening habits.
And it's not the customer's fault. The naming convention of Pass Labs' products isn't entirely straightforward, and when you're comparing two or three units at a time, the differences seem marginal. Fortunately, a handful of the right questions is usually all it takes to narrow things down, and two of the models we get asked about most often, back-to-back, are the XA25 and the XA30.8.
So we're breaking it down, diving into the technical specs of each model, reviewing the design, sound quality, and features, and stacking them up against each other, so you can walk away with a clear answer to the most asked questions: What's the difference between the XA25 and the XA30.8? And which one do I need for my system?
Design
Pass Labs has a signature physical design that's shaped its identity in the hi-fi space. Rather than joining the audiophile "rat race" to see who can create the flashiest, coolest hi-fi component, Pass Labs stays true to its philosophy of simplicity throughout: simple signal paths, high intrinsic linearity, limited collective feedback, MOSFET output devices, and Class A bias. That functional industrial design isn't minimalist for its own sake; it's a direct reflection of the nature of the internal circuitry. High-bias operation creates substantial heat, so the chassis becomes a large, dense aluminum heat-management structure with a deliberately bare interface.
Their components are not small and dainty by any means either. The XA25 and XA30.8 are well over 40 pounds each–48.5 lbs on the XA25 and 88 lbs on the XA30.8–and while the XA25 has slightly smaller dimensions than the XA30.8, they're both well over 15 x 15". These aren't the components you slide in a rack or place on a shelf. They consume quite a bit of power during operation and convert most of it into heat, so they must be placed in a spot where they can breathe. Pass Labs has put its own preventative measures in place, adding as much heat sinking as possible to the side panels of each chassis. Those heat sinks give the XA25 and XA30.8 more visual interest than they'd have without them.
Both units are constructed using premium materials like CNC-machined aluminum and steel. Pass Labs keeps those specs pretty close to its chest, so I can't confirm exactly what they're made of. As for what's happening on the front and back panels of the XA25 and XA30.8, I've got you covered. The XA25's front panel is about as simple as it gets: beveled edge detailing, engraved model name and brand name, a push-button power switch, and a blue LED indicator. The back panel is a little more exciting, with one set of RCA inputs and one set of Furutech binding post outputs for connecting your source/DAC and your speakers.

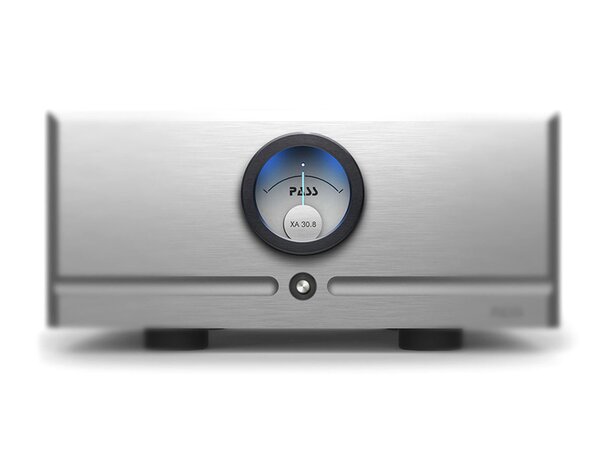

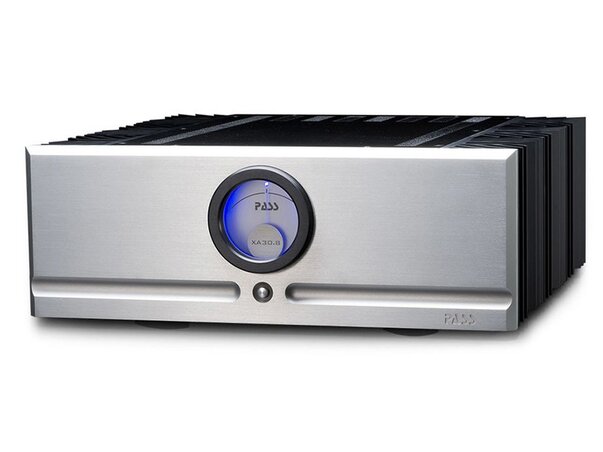

The XA30.8's front panel is only slightly fancier, with a round blue-illuminated bias meter and a push power button switch positioned underneath. On the back panel, you'll find one set of single-ended RCA inputs and one set of balanced XLR inputs, four speaking binding posts, and a 12V trigger/ground connection. One note on those inputs: the XLR sockets come with U-shaped metal jumpers; if you use the RCA inputs, you must leave these jumpers in place to connect XLR pin 3 to pin 1. The red (+) output connection and the black (-) connection are live. There is no ground reference at the speaker terminals, so the black (-) speaker terminal must never be treated as the ground.
This is extremely important when connecting an active subwoofer to the XA30.8's output. If you require a ground connection, then you should use the white ground terminal included on the back panel. The white signal ground connection is not a safety ground. The safety ground is only provided by the power cable, so you should never do anything to remove the safety purpose of the power cord or put the amp and your connected gear at risk.
A Note on Heat Sinks
Both the XA25 and XA30.8 feature heat sinking on the side panels of each chassis. The robust, oversized heat sinks serve multiple purposes. They allow the amplifier to run cooler and more efficiently, which makes it more reliable in the long run. Moreover, they enable the amp to maintain its optimal operating temperature even during extended listening sessions or when driving demanding loudspeakers. You'll get consistent performance regardless of the musical demands placed on it.
Sound
As two stereo power amplifiers from the same family, both sharing Class A push/pull operation, the XA25 and XA30.8 are similar and unique in their own regard. They both sport the warm, natural, engaging sound signature that Class A amplifiers are known for, but the XA25 sports a more vibrant, energetic sound quality than the XA30.8. While the XA30.8 wins in the muscle department, delivering a more powerful presentation, the XA25 sounds more agile. Music seems to start faster and have more snap and speed on the XA25. Music on the XA30.8 hits with fervor and intensity. Could it be attributed to the physical size difference of the two units? Maybe, but who knows for sure. That was just my impression.
XA25: Tube-like Sonic Excellence
The XA25 excels in the midrange, offering a vibrant, energetic character that breathes life into music. Presentations that already felt engaging became more so, and tracks that once sounded flat are given new life. Listening to Adele's album 25, the XA25 reproduced the nuance and emotional depth behind her vocals. She's a passionate singer who puts her all into every song she writes and records, and the XA25 didn't disappoint.
I cranked up the heat, no pun intended, switching gears to some heavier-hitting tracks across EDM, Hip-Hop, and pop genres. When paired with a set of Bryston floorstanding loudspeakers we've had for a while in our demo room, the XA25 flexed its sonic muscle, delivering an authoritative bass response that was powerful yet controlled. The XA25 maintains a warm, detailed sound signature and stays musical even at lower volumes, offering plenty of low-frequency energy, paired with a natural midrange and strong timing. Overall, it sounds more tube-like than the XA30.8, and pairs more flexibly with a wider range of speakers than other Pass Labs amplifiers. And that's one of the biggest takeaways here. While both are incredibly similar sonically, the XA25's tube-adjacent sound gave it an edge over the XA30.8 in that department.
XA30.8: The Beefier, More Powerful Sibling
The benefits of this extended Class A operation are immediately apparent as soon as I started listening. I opted to pair the XA30.8 with our pair of Focal Sopra No.2 Floorstanding Loudspeakers in the demo room, knowing it had the muscle to fit the job. The XA30.8 has the sonic edge with greater low-level detail retrieval and better dynamic contrast at low levels. Adele's 25 album felt revealing and intimate, and each note was reproduced with a high level of clarity and emotional impact.
Throughout my listening session, I did notice one thing that makes the XA30.8 stand out: its ability to disappear as a component, leaving only the music. This is a difficult task for any hi-fi component, especially one of this caliber that's not physically disappearing any time soon. While XA30.8 may not have felt as quick as the XA25, it was able to adapt to the changing demands of complex EDM passages and just as easily shift to jazz, acoustic, and so on. And I think that's a testament to the XA30.8's adaptability.
You see, comparing the XA25 and XA30.8 feels like splitting hairs. Both units are exceptionally natural, detailed, musical, and warm. They possess all the qualities of a Class A amplifier. Trying to determine which unit is "sonically superior" is easier said than done because they're both equally as impressive. I think what it ultimately comes down to is the gear you're pairing it with and how you plan to evolve your system over time.
When We Were Young
By Adele
(25)
Sympathy is a Knife Remix ft. Ariana Grande
By Charli XCX
(BRAT)
Cinema
By Harry Styles
(Harrys' House)
Party 4 U
By Charli XCX
(How I'm Feeling Now)
Features
With an extensive history in Class A amplification, Pass Labs has rightfully earned its spot as one of the best–if not the best–manufacturers for anyone seeking a Class A amplifier. Their amplifier output stages are engineered for optimal performance, paired with high-performing, effective heat sinks to ensure thermal stability even under demanding conditions, and their power supplies are designed to be exceptionally quiet while delivering clean, stable power. The XA25 and XA30.8 benefit from this rich legacy, incorporating lessons learned and technologies developed over the years of meticulous R&D.

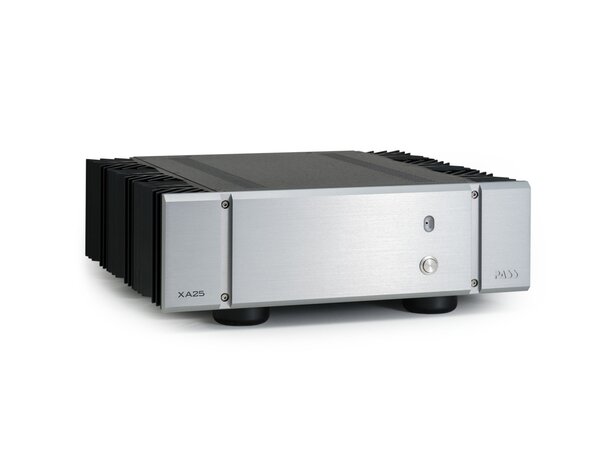

XA25
- Pure Class A Operation for pristine sound quality and low distortion
- Provides 25 Watts per channel into 8 ohms, suitabe for a variety of speakers
- Balanced and accurate audio reproduction, capturing fine musical details
- Clean, minimalist design reflecting Pass Labs' focus on simplicity and performance
- Robust power supply for stable, reliable performance
- Pairs well with sensibly efficient loudspeakers for engaging, detailed sound
- Balanced and single-ended inputs for flexible connectivity
- Designed for long-term reliability with minimal adjustments needed
- Musicality that lets listeners fully immerse in the nuances of their favorite music
- Exceptional transparency reveals every detail in the music
- Solid-state design offers efficiency, reliability, and stable performance
- Premium build quality with durable, high-quality materials
The XA25's signal path from input to output has been simplified to as few components as possible. You won't find any ballasts or degeneration resistors between output device emitters and power rails. Two internal components that Nelson Pass says add another form of feedback that most amps claiming to be zero-feedback overlook. At the heart of the XA25 lies its impressive output stage, designed around a single pair of 800-watt new-generation output transformers operating push-pull Class A. The result is an amplifier that delivers faster performance, lower distortion, reduced noise, and a higher damping factor. It still uses the same "New Old Stock" of small power JFETs and cascode MOSFETs in the classic 'CFA' voltage gain circuit.
The XA25's 25W per channel rating seems modest, but it's important to understand that this figure tells only part of the story. The Class A operation means that the amplifier remains in its most linear, low-distortion state throughout its entire power range. So not only are you getting a purer sound quality, but it also enables the XA25 to drive a wide range of speakers with authority and finesse.
Compared to the XA30.8, the XA25 triples its damping factor, reduces noise by 1/4, and doubles the slew rate. It's got a high current capability, load tolerance, and a simple circuit topology that makes it a serious contender for efficient and moderately sensitive loudspeakers.
XA30.8
- Renowned Class A topology delivers pristine sound quality and low distortion
- Provides 30 watts of power per channel into 8 ohms, ideal for a wide variety of speakers
- Symmetrical circuitry ensures balanced and accurate audio reproduction, capturing the subtlest details in music
- Meticulously selected components contribute to exceptional sound clarity and dynamics
- Robust power supply for stable and reliable performance
- Equipped with balanced XLR and single-ended RCA inputs for flexible system integration
- Crafted with precision and attention to detail, built to last and maintain performance over time
- Effortlessly drives a wide range of speakers with authoritative, nuanced sound reproduction
- Sleek, minimalist design reflecting Pass Labs' commitment to aesthetics and audio excellence
- Delivers superb audio fidelity, revealing the full potential of your music collection with clarity and precision
Despite being an older-generation model than the XA25, the XA30.8 is a powerhouse of audio excellence. As an improvement over the ".5" version (XA30.5), the XA30.8 features a better power supply, lower noise, much less degeneration, no caps in the signal path, and no frequency compensation. That means better low-level detail, better dynamic contrast, better phase coherence, and better signal balance.
With a pure Class A topology, the XA30.8 is capable of delivering 30 watts per channel into 8 ohms and 60 watts per channel into 4 ohms. While it may seem modest compared to higher-powered amplifiers, the XA30.8 is designed for high-quality, low-power amplification. It's got a dual-mono design with a separate power supply for each channel, ensuring excellent channel separation and imaging.
At the heart of the XA30.8 lies high-bias MOSFET transistors, a design choice that allows for extended Class A operation. Another key feature is direct-coupled front-end circuitry that eliminates coupling capacitors from the signal path. The result is a more direct and uncolored transmission of the audio signal. The benefits of this are twofold: first, it contributes to the amp's exceptional stability, ensuring consistent performance across a wide range of operating conditions. Second, it further enhances the XA30.8's ability to reveal the finest details in recordings, presenting music with a sense of immediacy and realism that's truly captivating.
Compared to the XA25, the XA30.8's robust power supply and higher output mean it can drive a wide range of speakers that the with authority and finesse–more inefficient, demanding, and lower-impedance speakers than the XA25 can.
Comparisons
First and foremost, Pass Labs' XA line combines its X and Aleph topologies into balanced single-ended Class A amplifiers. The company's X and XA lines of power amplifiers have been in continuous production and refinement over the last two decades, a direct reflection of their commitment to excellence.
The XA-30.8 is an improvement over the XA30.5, which quickly became the gateway into Pass Labs' lineup for many audiophiles. The ".8" classification denotes a new generation of additions and improvements made to the unit from the previous-generation ".5" model. The XA30.8 features an improved power supply, noise floor, and signal path.
The XA25 is one of Pass Labs' newest stereo power amplifiers, and while its modest 25W per channel into 8 ohms rating might look low on paper, it's high current capability, load tolerance, and simple circuit topology make it a serious option for efficient and moderately sensitive loudspeakers. It's an excellent entry point into Pass Labs' line and the world of high-end amplification without compromising on sound quality or build integrity.
The Case for the XA25
The XA25 tends to be more flexible with speaker pairings. For those seeking a "beefy" sound without sacrificing refinement, the XA25 delivers in spades. Its robust construction and generous power supply allow it to maintain composure even when reproducing complex, dynamic musical passages. In a world where the term "entry-level" often implies compromise, the XA25 stands as a glorious exception. It offers a level of performance that will satisfy even the most discerning audiophiles while remaining accessible to those taking their first steps into the world of high-end audio.
For music lovers seeking an amplifier that combines technical excellence with musical soul, the XA25 promises countless hours of musical bliss and the rediscovery of cherished recordings, one sublime listening session at a time.
The biggest flex the XA25 has over the XA30.8? It can drive more than you think. The faster, lower distortion, lower noise, higher damping, and larger Class A operating envelope into low-impedance loudspeakers enable the XA25 to perform at a much higher level than what you'd expect. In fact, it's actually stronger than its power rating suggests. While it's not necessarily designed for highly inefficient or extremely low-impedance speakers, it's capable of driving a wide range of speaker loads effectively. Speakers that benefit from Class A operation and high-current delivery will find the XA25 fit for the job.
The Case for the XA30.8
While the XA25 may be more flexible in its speaker pairings, the XA30.8's power output offers much more in terms of longevity. If your existing pair of loudspeakers is modest and the XA30.8 might seem too excessive and powerful, ask yourself this: Do I plan to upgrade my speakers to something even better in the future? Something more demanding than what I currently own. If the answer's a yes, or even a maybe, then the XA30.8 is the obvious choice. As your system evolves over the years, the XA30.8 stays as a constant fixture. It's financially more upfront than the XA25, but its longevity pays for itself many times over.
If you already own those large, demanding loudspeakers that need more power than the XA25 can offer, opt for the XA30.8. It offers a gateway to the upper echelons of audio reproduction without the stratospheric price tag often associated with flagship models. This amplifier challenges listeners to rediscover their music collections and hear familiar tracks as if it were the first time.
Dragon Cables
[Silver Dragon Premium Interconnect Cable, Black Dragon Power Cable, and Black Dragon Speaker Cable]
There are a lot of reasons why you need to make sure your audio cables are not afterthoughts.
Our HiFi Audio Dragon Cables bring out more of what you love in your music and audio gear. If you love your headphones but wish they had a bit more top-end sparkle - a Silver Dragon Headphone Cable would be a great option. If your USB cables keep dying - as many stock cables do - then check out our quality USB Audio Cables. We say time and time again that materials matter, and our audio cables and custom geometries actually help to bring out those desired properties in your gear and music. We make tons of custom options for our customers so that you can get the right HiFi Audio cable for your exact needs. If you have any questions feel free to Contact Us and we'll be more than happy to help.
Generally, stock audio cables are manufactured with subpar materials, metals with impurities, poor geometries, and an overabundance of layers to make them look and feel like a fire hose. Inconsistency and lack of quality control in stock cables can lead to poor sound quality and a veiled sound vs. what the musician intended for you to hear and feel from the music. Dragon Audio Cables are handcrafted with the highest standards and made to order according to your specific needs. At Moon Audio, we create a custom cable for you using the highest quality UP-OCC silver or copper conductors that can be manufactured. UP-OCC metals are void of impurities and are optimized for signal transfer and sound quality. We have one of the largest collections of audio and headphone connection options available online and we create limitless audio cable options depending on your specific gear and needs.
Why Dragon Cables?
You’ve heard the saying that a chain is only as strong as its weakest link, right? Well, the same applies to your brand new audiophile-grade headphone or other audio components. The weakest link, in this case, is your stock audio cable or the cheap interconnects the manufacturer threw in the box just to get you up and running. Why is the audio cable always an afterthought, when it’s just as important as the rest of your system? At Moon Audio, we use the purest and best raw materials in our cables to unveil your music. We believe that materials matter and your audio cables should have the same care and craftsmanship that manufacturers put into their audio components and headphones. Audio cables are ultimately the connection to your music. The fact remains that cabling is often considered the last priority to that of the main product and a means to cut down the overall production costs. It’s as simple as that. Dragon Cables elevate every note - as if you were hearing your favorite music for the very first time.
Verdict
Deciding between the Pass Labs XA25 Stereo Power Amplifier and the XA30.8 Stereo Power Amplifier isn't about picking a winner–it's about matching the amplifier to your system and your listening priorities. Ask yourself where you see your system heading. Both are outstanding examples of Pass Labs' Class A philosophy hard at work, but they arrive at that shared sound signature from different directions.
If speed, agility, and a livelier top-end are what you're after, the XA25 is the easier amplifier to live with day to day. Its lower weight and smaller footprint make it simpler to integrate into a room, and its flexibility across speaker loads means it won't box you into a narrow set of pairings. It's an amplifier built for music listeners who want the full Class A experience without needing to plan their room around it. The XA30.8, on the other hand, is the choice for listeners with larger, more demanding speakers or those who know they'll be upgrading their loudspeakers down the line. Its dual-mono design, higher current delivery, and extended Class A operation give it the headroom to control difficult loads with authority. It rewards patience and long listening sessions, disappearing into the background. For both the XA25 and XA30.8, we recommend the Silver Dragon Premium Interconnect Cable, Black Dragon Power Cable, and Black Dragon Speaker Cable to complement the amplifier's power and control, ensuring you're hearing everything this amplifier is capable of.
In the end, neither amplifier asks you to compromise. The XA25 offers an accessible entry point into serious Class A amplification, while the XA30.8 provides the muscle and headroom to grow into larger, more demanding systems. Wherever your system goes from here, both are built to reveal more of your music than you knew was there. And that's the real magic.
Featured Products
Related Videos
Stop Buying Amps Wrong! Saros Europa Differential Tube Headphone Amp Review
WATCH THIS Before Buying ANY Audio Gear! 4 Things You NEED to Know
Pass Labs HPA-1c Headphone Amp Review: 10dB Quieter, Even Better Sound
What's in the Box
- XA25 Power Amplifier
- Power Cable
- Manual and Warranty
- XA30.8 Power Amplifier
- Power Cable
- Manual and Warranty
Specifications
XA25 Stereo Power Amplifier
Class: A
Type: Stereo
Gain (dB): 20
Inputs: RCA
Power Output /ch (8 ohm): 25
No Output Devices (/ch): 4
Power Consumption (Watts): 240
Standby Power Consumption (Watts): <1
Unit Dimension (W x D x H) (In.): 17 x 17.25 x 6
Unit Weight (LBS): 48.5
XA30.8 Stereo Power Amplifier
Class: A
Type: Stereo
Inputs: XLR/RCA
Gain (dB): 26
Full Power at 26 dB gain (V): 0.77
Low Frequency Response: 1.5 Hz
High Frequency Response: 100 kHz
Power Output/ch (8 ohm): 30
Power Output/ch (4 ohm): 60
Distortion (1 kHz, full power): 1%
Maximum Output (Volts): 40
Maximum Output (Amps): 20
Input Impedance (SE & BAL Kohms): 50/100
Damping Factor: 150
Slew Rate (V/uS): 50
Output Noise (uV): 200
Input CMRR (dB): -60
DC Offset (V): 0.05
Leaves Class A at pk Watts: 61
Current Draw at Idle (Amps): 3.1
Power Consumption (Watts): 375
Temperature (deg C.): 53
Unit Dimensions (W x D x H) (In.): 19 x 21.25 x 7.5
Unit Weight (LBS): 88
